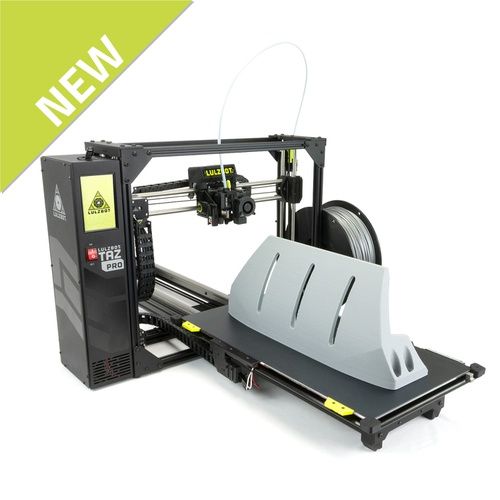

LulzBot TAZ Pro Long Bed
LulzBot TAZ Pro Long Bed - Your 3D Printing Freight Train.
This isn't just a 3D printer; it's a USA-Made powerhouse that redefines scale and strength. With its sprawling build platform, the TAZ Pro Long Bed echoes the might of a freight train, chugging through layers of .gcode with unwavering reliability and strength.
No wonder its seen as a 3D printing freight train!
Get to Know:
Break free from the confines of conventional 3D printing. With the LulzBot TAZ Pro Long Bed, embark on a journey of grand scale and robust strength, pushing the limits of what you can create in a single, uninterrupted print! Imagine creating long, rugged prototypes and print-on-demand parts without the usual build volume constraints, eliminating the need to split your projects into multiple parts.
By taking customer feedback to heart, LulzBot designed the TAZ Pro Long Bed to overcome the challenges of large-scale 3D printing. This advanced machine features a Y-axis over twice the size for optimal layer continuity and a factory 1.2mm nozzle Tool Head for robust parts quickly. It's perfect for creating large functional prototypes, manufacturing aids, and on-demand parts, streamlining your big printing projects.
What's in the Box:
Equipped with the robust Asteroid Tool Head and a hefty 1.2mm nozzle, this machine lays down layer after layer with the steadfastness of a locomotive. Choose the 2.4mm nozzle for even greater capacity, handling large prints with ease.
| 3D Printing Technology | FFF (Fused Filament Fabrication) |
| Build Volume | 282 x 582 x 285 mm (11.10 x 22.91 x 11.22 inches) |
| Standard Tool Head Model | Asteroid 285 |
| Equipped Layer Height Range | 0.3mm (300 microns) to 0.9mm (900 microns) |
| Platform Layer Height Capabilities |
0.05mm (50 microns) to 1.8mm (1800 microns) |
| Nozzle Diameter & Material |
1.2mm GammaMaster® Steel |
| Maximum Hot End Temperature |
290°C (554°F) - Firmware Limited |
| XYZ Positional Resolution |
X and Y axes - 0.01mm (10 microns), Z axis - 0.002mm (2 microns) |
| Movement System |
GT2 Belt Drive with Igus SST Rods and Polymer Bushings |
| Maximum Travel Speed | 150 mm/s - Firmware Limited |
| Print Bed Heater |
360W 24V Silicon |
| Print Bed Material |
Blue Spring Steel Magnetic Flex Bed System |
| Maximum Print Bed Temperature |
80°C (176°F) |
| Filament Diameter Compatibility |
2.85mm (Standard), 1.75mm (Optional) |
| Filament Sensor |
Runout and Stripping Detection |
| Mainboard |
32-bit Archim 2.2b with Trinamic TMC2130 drivers for quiet printing |
| Firmware |
Marlin |
| Bed Leveling System |
Automatic BLTouch 32-Point Mesh |
| Calibration |
Automatic X-Axis Tramming, Z-Offset, and Backlash Compensation |
| Power Supply |
500W 24V Mean Well, Auto-Switching |
| Power Input |
100VAC-240VAC |
| Slicer Software Recommendation |
Cura LE (LulzBot Edition) |
| OS Compatibility | Windows, macOS, Linux |
| Supported File Formats |
STL, OBJ, X3D, 3MF |
| Operating Temperature Range |
41°F to 113°F (5°C to 45°C) |
| Supported Print Materials |
PLA, TPU, ABS, PETg, PVA, PVB, Nylon, PC, and others below 290°C |
| Enclosure |
Optional Accessory Available upon Request |
| Connectivity Options |
USB Serial, Includes 16GB Flash Drive for Standalone Printing |
| Certifications |
FCC, CE, RCM, ETL (Intertek/UL), CSA, OSHWA, WEEE |
| Warranty |
1-year standard with options for extended warranties |
| Country of Origin |
USA |
| Manufacturer | Aleph Objects |
|---|
